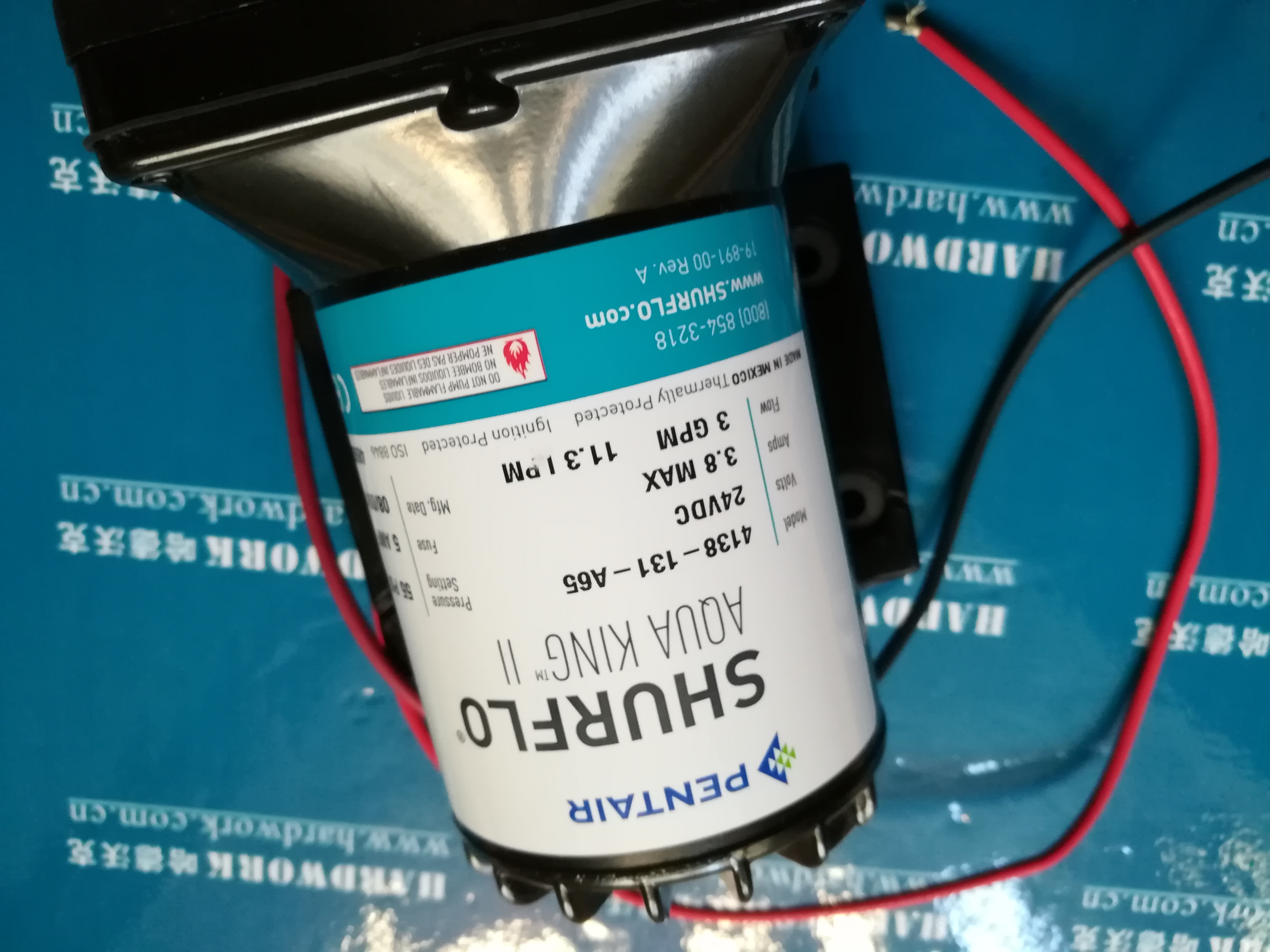

Part Number: 4138-131-A65

APPLICATION:
Multi-fixture Marine fresh water pump installation.This pump may be used for general fresh water transfer.

PUMP DESIGN:
Type:  4 Chamber Diaphragm pump
Ports: ½”-14 NPSM-Male
Liquid: 130°F [54°C] Max
Dry-Prime:  6 feet [1.82 M]
Run Dry:  Yes
Inlet Pressure: 30 PSI Max. [2.06 Bar]

ELECTRICAL:
Motor:  24V DC Permanent Magnet, Intermittent Duty
Protection:  Thermal Overload, Automatic Restart
Leads: 14 AWG, 14 ¾” [37 cm] Red +, 15” [38 cm] Black
Fuse:  5 Amp Recommended
Control: Shut-Off 55 PSI [3.8 Bar] ± 2 PSI [0.13 Bar]
Re-start 40 PSI [2.8 Bar] ± 2 PSI [0.13 Bar]
Maximum By-Pass 62 PSI [4.2 Bar] ± 2 PSI [0.13 Bar]

MATERIALS OF CONSTRUCTION:
Housings:  Polypro
Valves/Seals:  EPDM
Diaphragm:  Santoprene
Hardware:  Stainless Steel

AGENCY APPROVALS:
Ignition Protection 8846, CE, IMCI Certified
