厦门市哈德沃克电子科技有限公司专业供应英国Honeywell霍尼韦尔中程变送器2104B2081，厂家直供，原装进口。

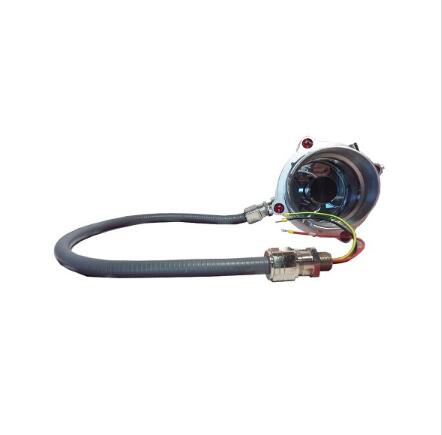

2104B2081 | Honeywell | Medium Range Transmitter Incl Conduit ATEX
Honeywell 2104B2081 Open Path Infrared Gas Detector
HONEYWELL 2104B2081 SEARCHLINE EXCEL OPEN PATH GAS DETECTOR

Honeywell 2104B2081 Tx Mid Range Ex IIC T6 (Tamb-40to+40°C) Gb Ex II 2 G T5(Tamb-40to+65°C) Vmax=32Vdc Pmax=10W.Open Path Infrared Gas Detector.

The Searchline Excel by Honeywell Analytics is an Infrared Open Path Flammable Gas Detector. The Honeywell 2104B2081 transmitter sends an infrared beam to the receiver, and the gas is detected by absorption in the infrared beam. Supplied in three versions, dependent on area size.  Short-range (5-40m), medium-range (40-120m) and long-range (120-200m).
Searchline Excel Honeywell 2104B2081 is fully certified for hazardous area use. It can be deployed in harsh environments, unaffected by sunlight or other radiation from storms and flare stacks, making it ideal for the oil and gas sector.  A xenon flash lamp creates an exclusive pulse duration and shape which the receiver recognises and disregards potentially interfering signals. A filter is included to ensure operational integrity in conditions of fog or rain.
The DX termination unit (UL only) is for mounting and wire connections, with an intrinsically safe connection socket for the SHC-1 handheld interrogator, used for configuration and maintenance. Included is a multi-drop Modbus RS485 interface.
For direct connection to Excel (ATEX/IECEx versions), the interrogator must be used with the SHC protection device module and lead (part 04230-A-1025). The area would have to be made safe before connection. For non-intrusive configuration and maintenance, the Searchline can be paired with XNX or OELD smart junction box to avoid area declassification.

Features：
Product:2104B2081 Honeywell Medium Range Transmitter Incl Conduit ATEX
Rapid Response speed: T90 less than 3 seconds (under normal operating conditions)
Range 0 to 5 LEL.m
Recommended Alarm Settings (Low) 1.0 LEL.m; (high) 3.0 LEL.m
Ultra-sensitive
Operating temperature: -40° to +65°C (-40° to 150°F)
Resistant to chemical poisoning
Improved for easy alignment of TX/RX
Cost-effective, large areas can be covered without lots of point detectors, resulting in less maintenance
Housing 316 stainless steel
Approvals; ATEX/IECEx, UL, FM/CSA, INMETRO & CU-TR Ex
Previously branded under Sieger and Zellweger names
Weight (including mounting bracket) short-range TX: 3.5kg, medium & long-range TX: 7kg. RX: 3.5kg
